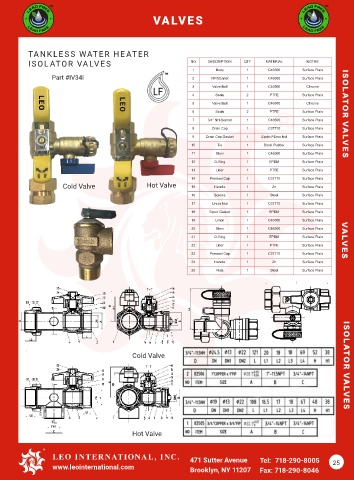

VALVES
TANK LES S WATER HE ATER
ISOL ATOR VALVES NO DESCRIPTION QTY MATERIAL NOTES
1 Body 1 C46500 Surface Plain
Part #IV34I 2 FIP/Bonnet 1 C46500 Surface Plain
3 Valve Ball 1 C46500 Chrome
4 Seals 2 PTFE Surface Plain
5 Valve Ball 1 C46500 Chrome
6 Seals 2 PTFE Surface Plain ISOLATOR VALVES
7 3/4" NH-Bonnet 1 C46500 Surface Plain
8 Drain Cap 1 C37710 Surface Plain
9 Drain Cap Gasket 1 Epdm PErox Nsf Surface Plain
10 Tie 1 Black Rubber Surface Plain
11 Stem 1 C46500 Surface Plain
12 O-Ring 1 EPDM Surface Plain
13 Liner 1 PTFE Surface Plain
14 Pressed Cap 1 C37710 Surface Plain
Cold Valve Hot Valve 15 Handle 1 Zn Surface Plain
16 Screws 1 Steel Surface Plain
17 Union Nut 1 C37710 Surface Plain
18 Spool Gasket 1 EPDM Surface Plain
19 Union 1 C46500 Surface Plain
20 Stem 1 C46500 Surface Plain
21 O-Ring 1 EPDM Surface Plain VALVES
22 Liner 1 PTFE Surface Plain
23 Pressed Cap 1 C37710 Surface Plain
24 Handle 1 Zn Surface Plain
25 Nuts 1 Steel Surface Plain
Cold Valve ISOLATOR VALVES
Hot Valve
